2 x Plaquette gorge interieur marque HORN référence R114.0300.1.02EG55

Catégorie : Plaquettes pour gorge radiale (TRNP_RA_SLD_COR)

Référence COC : 304521

Référence fabricant : R1140300102EG55

Marque : HORN

Prodfam : 114 PLAQUETTE GORGE INTERIEUR

Prix de vente : 54,11 €/HT

Reduction : 7.00%

Prix de vente conseillé : 29,09 €/HT (par pièce)

Conditionnement : 2 pièce(s)

Classification des matières niveau 1(TMC1ISO) :
P
M
K

Sur commande



Informations de recherche : [ADINTMS:HORN B114 - 311090R][CDX:6.5][DMIN1:16.5][HAND:R][LF:5][MARQUE:HORN][RE:0.2]

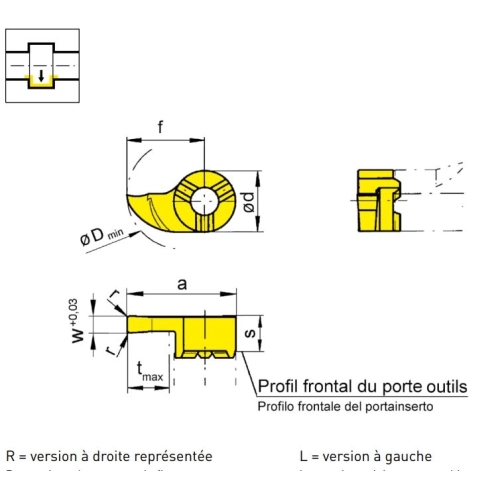

Caractéristique(s)
Diamètre d'alésage minimal (Dmin) 16.5 mm
Interface adaptative direction machine (ADINTMS) "HORN B114 - 311090R"
Longueur fonctionnelle (S) 5 mm
Sens (HAND) R
Largeur de coupe (W) 3 mm
Profondeur de coupe maximale (Tmax) 6.5 mm
Rayon de bec (r) 0.2 mm
Nuance (GRADE) EG55
Largeur fonctionnelle (f) 11.3 mm
Largeur du corps (d) 9 mm
Valeur a sur plan (HORN_a) 15,8 mm
Code ISO matière à usiner (TMC1_ISO) PMK
Marque du produit (MARQUE) HORN
Délai (DELAI) 2



ADINTMS : "HORN B114 - 311090R"
