Catégorie : Adaptateur cylindrique (COC_ADAPTCYL_STA)
Référence COC : 304743
Référence fabricant : LB11P0012200
Marque : HORN
Prodfam : ADAPTATEUR B11P
Famille : HORNRF
Prix de vente : 227.999 €/HT (par pièce)
Reduction : 7.00%
Prix de vente conseillé : 245.16 €/HT (par pièce)
Conditionnement : 1 pièce(s)
Stock Cobalt Outils Coupants : 0 pièce(s)
Informations de recherche : [ADINTMS:Cylindrical shank w/ 3 flats -metric: 12][ADINTWS:HORN B11P - 11P070L][DCONMS:12][LF:75][MARQUE:HORN]

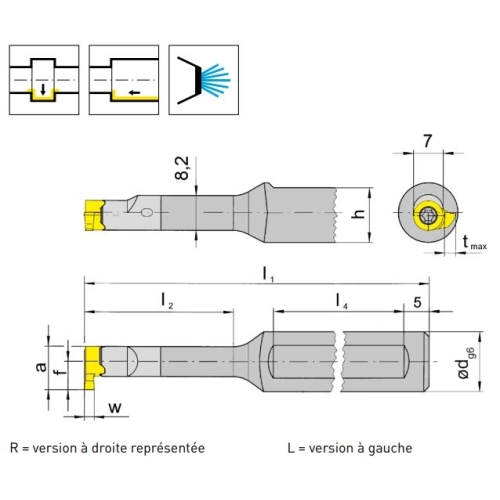

Caractéristique(s) | |
Interface adaptative direction pièce (ADINTWS) | "HORN B11P - 11P070L" |
Interface adaptative direction machine (ADINTMS) | Queue cylindrique avec 3 plats -métrique: 12 |
Longueur fonctionnelle (l1) | 75 mm |
Diamètre de connexion (d) | 12 mm |
Hauteur de queue (h) | 11 |
Longueur de corps (l2) | 15 mm |
Code matériau du corps (BMC) | Carbide |
Valeur l4 sur plan (HORN_l4) | 40 mm |
Pièce détachée 1 (SPARE_1) | 310T9P |
Pièce détachée 2 (SPARE_2) | T9PL |
Marque du produit (MARQUE) | HORN |
Délai (DELAI) | 2 |
