Catégorie : Fraises à surfacer-dresser vissées en bout (COC_SLD_COR_EMBOUT)
Référence COC : 295014
Référence fabricant : 613PL6162TI25
Marque : HORN
Prodfam : 613 SURFACER-DRESSER
Prix de vente : 115,10 €/HT
Reduction : 7.00%
Prix de vente conseillé : 61,88 €/HT (par pièce)
Conditionnement : 2 pièce(s)
Classification des matières niveau 1(TMC1ISO) :Informations de recherche : [ADINTMS:HORN - 313113R][APMX2:5.7][DCX:21.7][GRADE:TI25][LF:6.1][MARQUE:HORN][RE:0.2][ZEFP:6]

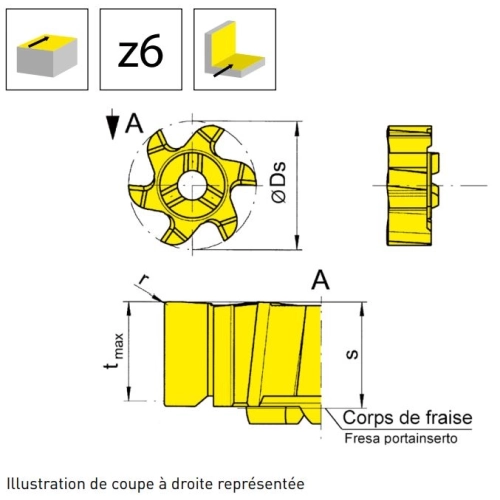

| Caractéristique(s) | |
| Interface adaptative direction machine (ADINTMS) | HORN - 313113R |
| Longueur fonctionnelle (s) | 6.1 mm |
| Diamètre de coupe maximal (Ds) | 21.7 mm |
| Profondeur de coupe maximale (tmax) | 5.7 mm |
| Rayon de bec (r) | 0.2 mm |
| Nuance (GRADE) | TI25 |
| Nombre d'arêtes de coupe effectives en bout (ZEFP) | 6 |
| Code ISO matière à usiner (TMC1_ISO) | PMKNS |
| Marque du produit (MARQUE) | HORN |
| Délai (DELAI) | 1 |
